The Company


An audio enthusiast of 25 years, Kevin Hancock founded Lateral Audio Stands with the goal of creating hi-fi furniture capable of redefining audio systems.

LAS-4 AV Stand

LAS-4 AV Stand

The vibrational behaviour of a stand profoundly affects the musicality of an audio system. Lateral Audio stands are designed to both maximise the removal of vibrational energy to an absorbing ground path and to generate minimal energy themselves, thereby reducing the vibration that enters into the components of your audio system.

They become a significant component at the centre of your audio system, increasing the performance of entry level audio components and allowing mid to high-end components to perform at their very best.

Each design has been inherently influenced by engineering design in consumer product vibration and aerospace structures, and the stands have been listen-tested and approved by select audio dealers such as Audio-philia.


Key Features

  • Unique isolation technology - Lateral Audio’s Concert Isolation Platform

  • Unique stand construction - shelves are not integral to the stand’s legs, which enables custom shelf spacing, additional shelves to or removed from some standard designs, and the ability to easily add remove/replace shelves at home, as required

  • Split leg construction isolates upper tiers on 4 & 5 tier stands (Tier+)

  • Shelf design and construction - CNC machined premium grade birch ply and premium oak veneer

  • Solid oak legs - CNC cut from particularly dense oak, chosen for its enhanced audio properties


Lateral Audio Stand Models


Concert Isolation Platform

All Lateral Audio stands have been designed around their unique Concert Isolation Platform. It consists of a high performance, non-resonant Concert audio surface and 4 isolating cone contact points that are optimised for either digital sources or turntables (select your preference when ordering).

The Concert Isolation Platform couples with the stand through the 4 Direct Point Contacts integrated into every Lateral Audio shelf, and together they create an energy absorbing ground path.

The LAS-4 Concert Stand comes with a Concert Isolation Platform on the top shelf and standard, and the shelves of all other Lateral Audio stands can be upgraded with the platform.


Specially developed audio surface with premium oak veneer - 540mm (w) x 440mm (d) x 45mm (h - including isolating cones)

4 isolating cones, 1 of which is adjustable to ensure a completely horizontal surface

Optimised for either digital sources or turntables, select your preference

£400 per platform

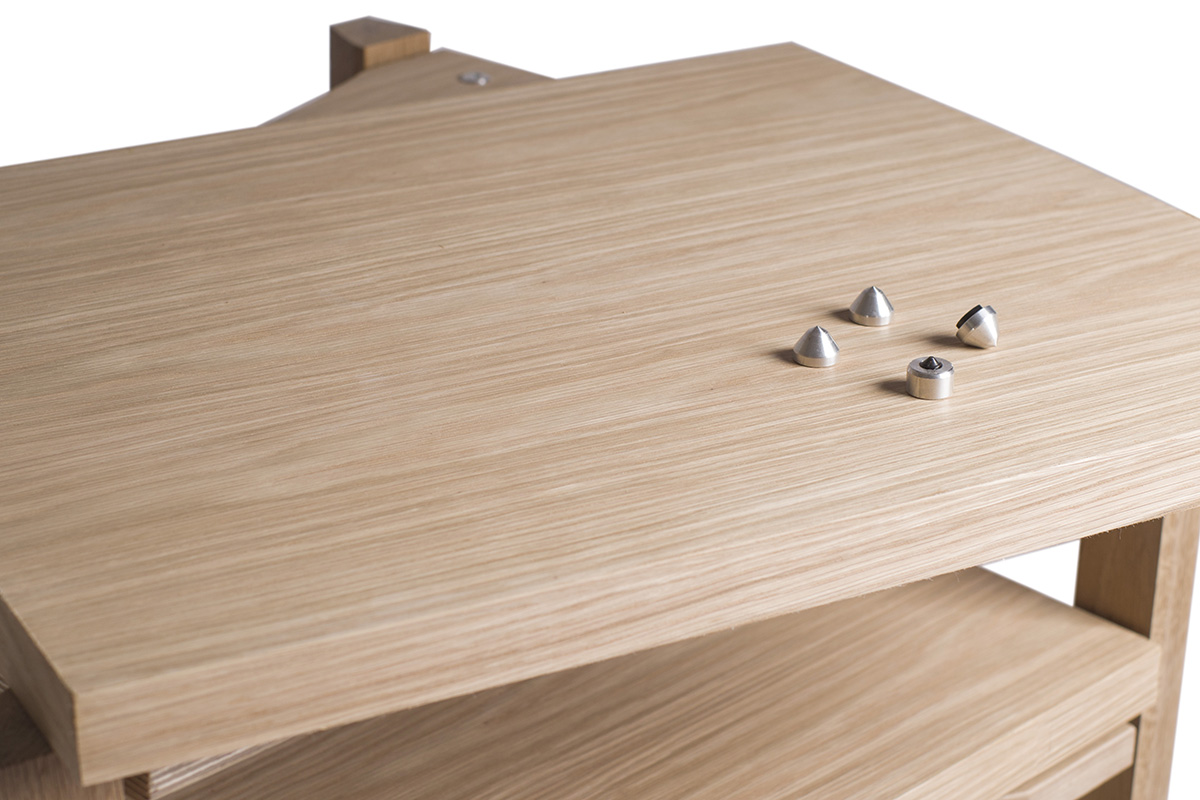

Isolating Cones couple with the stand through each shelf’s Direct Point Contacts (click to enlarge image)

Direct Point Contacts are fully integrated into each shelf in all Lateral Audio stands (click to enlarge image)

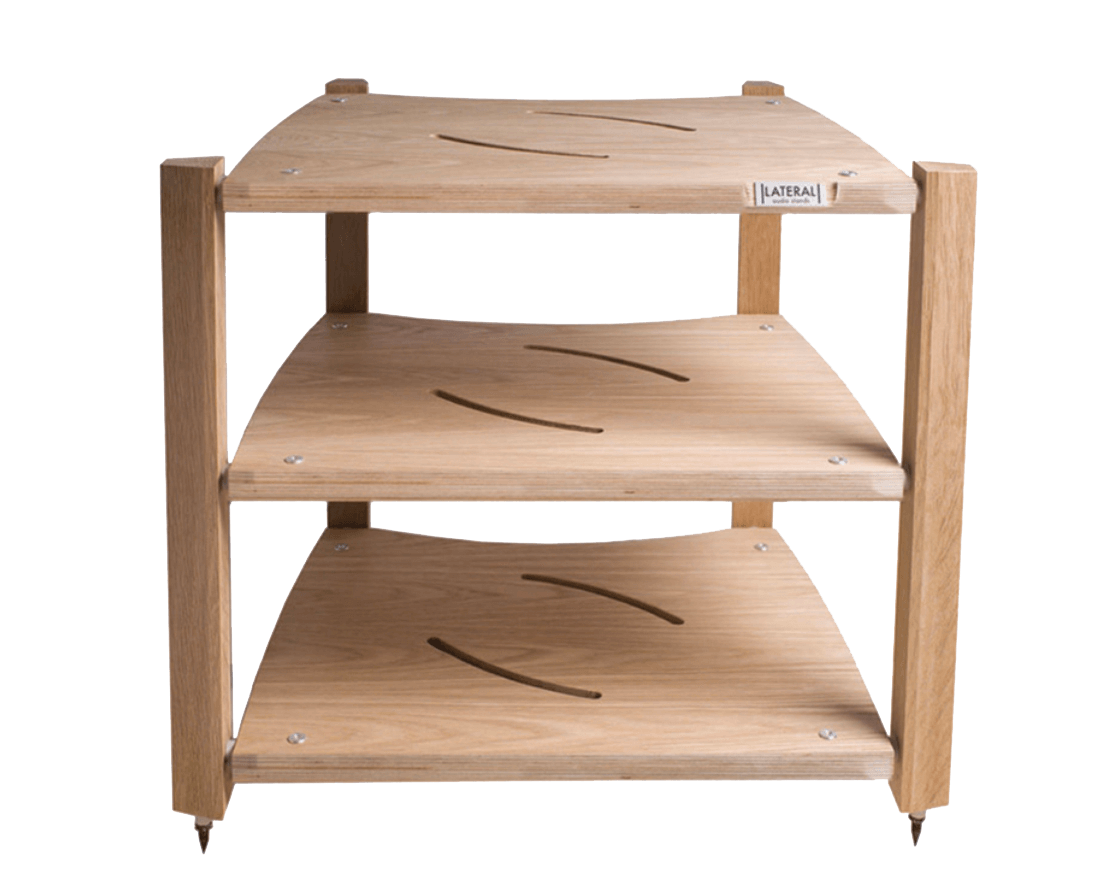

LAS-4 Integral Stands

The LAS-4 is a high performing hifi stand, made entirely from high-grade materials chosen for their audio enhancing properties.

The energy absorbing design of this stand, with each shelf being independently held, is integral to all Lateral Audio designs and also allows for shelves to be added to, or removed from, standard designs and for shelves to be spaced apart according to custom requirements (standard spacings specified below).

All components of Lateral Audio stands are CNC machined including the attractively designed slots in each shelf, designed to reduce vibration and enable heat dispersion.

Each tier can be upgraded with the Concert Isolation Platform.

Available soon: The Integral Stand in Black (for an additional cost).


Sold birch ply & premium oak veneer shelves, solid oak legs

Available with 2, 3, 4 or 5 tiers as standard. Additional tiers can be added to the 4 and 5 tier stands (Tier+)

Spacings between shelves can be customised

Capacity for heavy components of up to 50kg

From £750

LAS-4 INTEGRAL STAND SPECIFICATIONS
Finish Shelves: Solid CNC machined birch ply (25mm), with premium oak veneer

Legs: Solid CNC machined oak
Shelf Dimensions 540mm (w) x 440mm (d)
2 Tier Stand Dimensions 540mm (h) x 650mm (w) x 495mm (d)

Gap between shelves: 415mm
(bespoke spacings available on request)
3 Tier Stand Dimensions 540mm (h) x 650mm (w) x 495mm (d)

Gap between shelves: 195mm
(bespoke spacings available on request)
4 Tier Compact Stand Dimensions 670mm (h) x 650mm (w) x 495mm (d)

Gap between shelves: 195mm
(bespoke spacings available on request)
4 Tier Stand Dimensions 850mm (h) x 650mm (w) x 495mm (d)

Gap between shelves from top to bottom: 195mm, 195mm, 285mm
(bespoke spacings and additional shelves available on request)

Split leg design, for additional isolation
5 Tier Stand Dimensions 980mm (h) x 650mm (w) x 495mm (d)

Gap between shelves from top to bottom: 1195mm, 105mm, 195mm, 285mm
(bespoke spacings and additional shelves available on request)

Split leg design, for additional isolation
MAX Weights Bottom tier: 50Kg
All other tiers: 30kg
Price from £750

LAS-4 Concert Stands

The LAS-4 Concert stand builds further upon the already excellent Integral design, and offers true high-end performance.

It comes with both a minimally structured top shelf (with anodised aluminium facia in black or silver) for enhanced audio performance and the Concert Isolation Platform as standard.

Each additional tier can also be upgraded with the Concert Isolation Platform.

Available soon: The Concert Stand in Black (for an additional cost).


Minimally structured top shelf plus Concert Isolation Platform as standard

Sold birch ply & premium oak veneer shelves, solid oak legs, silver or black anodised aluminium facia on top shelf

Available with 2, 3, 4 or 5 tiers. Additional tiers can be added to the 4 and 5 tier stands (Tier+ stands)

Spacings between shelves can be customised

Capacity for heavy components of up to 50kg

From £1300

LAS-4 CONCERT STAND SPECIFICATIONS
Finish Top Shelf: Minimal structure shelf, with premium oak veneer and silver or black annodised aluminum facia

All other shelves: CNC machined birch ply (25mm), with premium oak veneer

Legs: Solid CNC machined oak
Shelf Dimensions 540mm (w) x 440mm (d)
2 Tier Stand Dimensions 585mm (h) x 650mm (w) x 495mm (d)

Gap between shelves: 415mm
(bespoke spacings available on request)
3 Tier Stand Dimensions 585mm (h) x 650mm (w) x 495mm (d)

Gap between shelves: 195mm
(bespoke spacings available on request)
4 Tier Compact Stand Dimensions 715mm (h) x 650mm (w) x 495mm (d)

Gap between shelves: 195mm
(bespoke spacings available on request)
4 Tier Stand Dimensions 895mm (h) x 650mm (w) x 495mm (d)

Gap between shelves from top to bottom: 195mm, 195mm, 285mm
(bespoke spacings and additional shelves available on request)

Split leg design, for additional isolation
5 Tier Stand Dimensions 1025mm (h) x 650mm (w) x 495mm (d)

Gap between shelves from top to bottom: 1195mm, 105mm, 195mm, 285mm
(bespoke spacings and additional shelves available on request)

Split leg design, for additional isolation
MAX Weights Bottom tier: 50Kg
All other tiers: 30kg
Price from £1300

LAS-4 AV Stands


Designed for the audio enthusiast who prefers a wider layout and for AV setups, the LAS-4 AV stand benefits from the same unique and tensioned structure as the Integral and Concert models.

The completely open front design (with no central legs or supports) allows for more flexible positioning of your components and shows them off to their best.

Made to order. 3 tiers as standard. Each tier can be upgraded with the Concert Isolation Platform, 1 per tier for the AV950 and 2 per tier (LH &RH) for the AV1140.

Price from £1850.

LAS-4 AV STAND SPECIFICATIONS
Finish Shelves: Solid CNC machined birch ply (25mm), with premium oak veneer

Legs: Solid CNC machined oak
No. Tiers 3 Tiers as standard

AV 950
SHELF Dimensions

950mm (w) x 440mm (d)
AV 950-530
OVERALL STAND Dimensions

530mm (h) x 1060mm (w) x 495mm (d)

Gap between shelves: 195mm
(bespoke spacings available on request)
AV 950-600
OVERALL STAND Dimensions

600mm (h) x 1060mm (w) x 495mm (d)

Gap between shelves from top to bottom: 195mm and 255mm
(bespoke spacings available on request)

AV 1140
SHELF Dimensions

1140mm (w) x 440mm (d)
AV 1140-530
OVERALL STAND Dimensions

530mm (h) x 1250mm (w) x 495mm (d)

Gap between shelves: 195mm
(bespoke spacings available on request)
AV 1140-600
OVERALL STAND Dimensions

600mm (h) x 1250mm (w) x 495mm (d)

Gap between shelves from top to bottom: 195mm and 250mm
(bespoke spacings available on request)
MAX Weights 50Kg
Price from £1850

LAS-4 Amp & Amp Design Stands


The LAS-4 Amp is designed to support large mono and power amplifiers separately from the main audio stand, the 1 tier LAS-4 Amp stand benefits from the same unique and tensioned structure as the Integral and Concert models.

Can be upgraded with the Concert Isolation Platform, and with a CNC machined anodised aluminium facia in Black or Silver (as Concert stand, above).

The LAS-4 Amp Design caters for larger amplifiers and are made to order, with custom height, width and depth possible. Please contact us for details.

Price from £500.

LAS-4 AMP STAND SPECIFICATIONS
Finish Shelf: CNC machined birch ply (25mm), with premium oak veneer

Legs: Solid CNC machined oak
Shelf Dimensions 540mm (w) x 440mm (d)
Stand Dimensions 585mm (h) x 650mm (w) x 495mm (d)
MAX Weight 50Kg
Price from £500

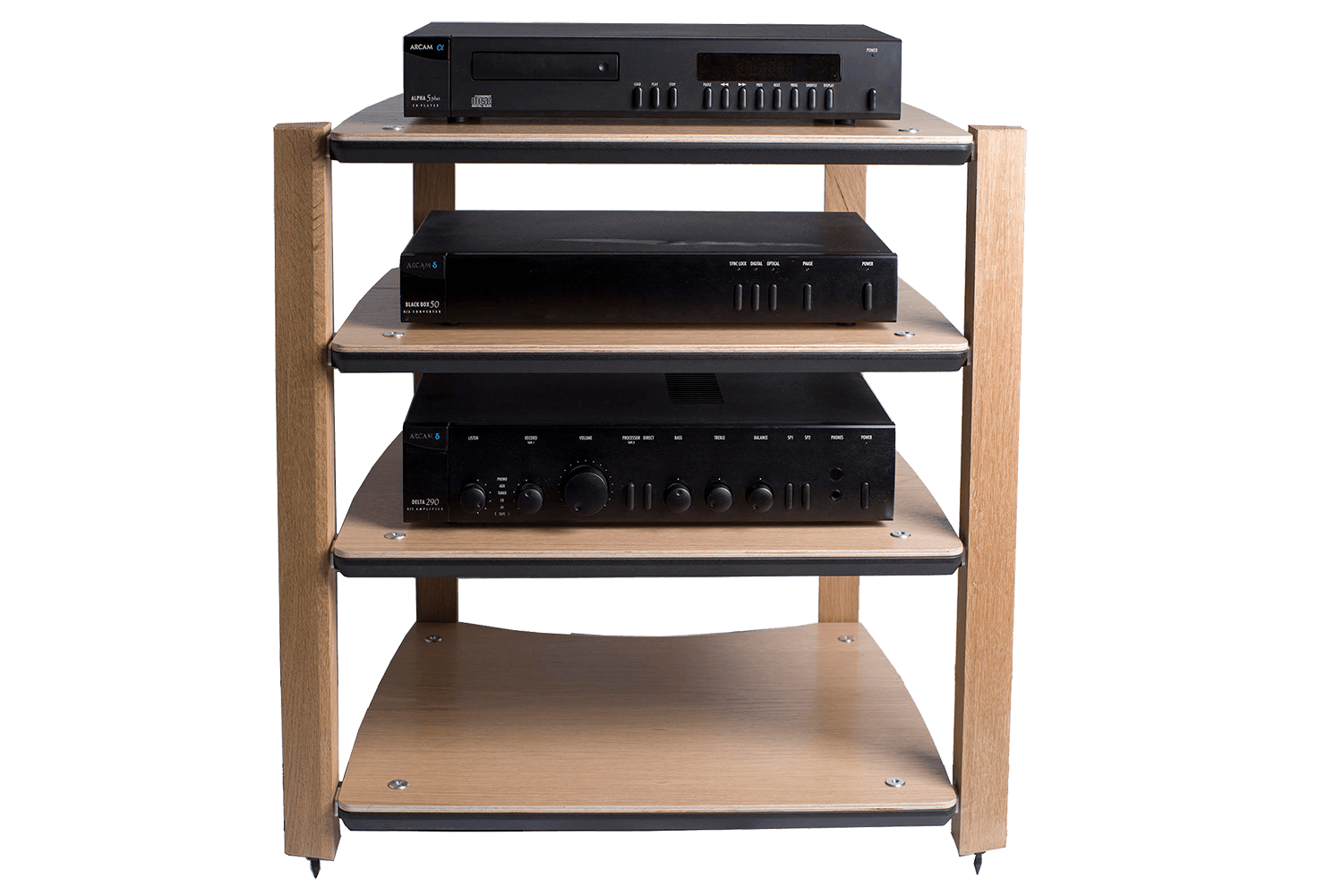

LAS-9 Discovery Stands

The Discovery is Lateral Audio’s entry level stand and was designed for the contemporary home, offering performance with style and a splash of colour (black, white or red).

Made to order. Can be upgraded with the Concert Isolation Platform.

Price from £575.

lateral-stands-discovery (1).png

LAS-4 DISCOVERY STAND SPECIFICATIONS
Finish Shelves: CNC machined birch ply (16mm), with premium oak veneer
Legs: Solid CNC machined oak
Shelf Dimensions xxmm (h) x 540mm (w) x 440mm (d)
2 Tier Dimensions 540mm (h) x 650mm (w) x 495mm (d)

Gap between shelves: 415mm
(bespoke spacings available on request)
3 Tier Dimensions 540mm (h) x 650mm (w) x 495mm (d)

Gap between shelves: 195mm
(bespoke spacings available on request)
4 Tier Compact Dimensions 670mm (h) x 650mm (w) x 495mm (d)

Gap between shelves from top to bottom: 150mm, 150mm, 190mm (bespoke spacings available on request)
Max. Weight per Tier 15kg
Price from £575

Click to enlarge photos:
